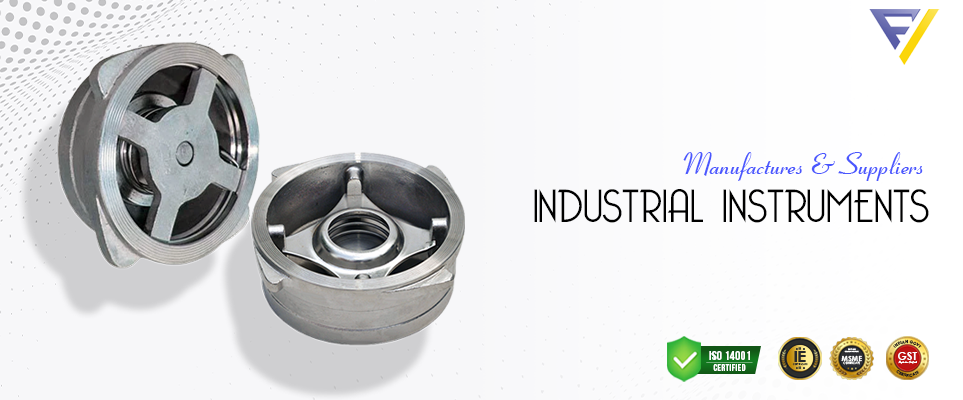

A Disco Check Valve is a specialized type of valve used in industrial applications. It is designed to allow fluid to flow in only one direction. Disco Check Valves are often used in pipeline systems. They are also sometimes used in pumps and other machinery to help prevent damage from backflow. Disco Check Valves are available in a variety of sizes and configurations, and they can be made from a variety of materials.
The most common type of Disco Check Valve is the swing check valve, which uses a disc to block fluid flow in the wrong direction. Disco Check Valves are an important part of many industrial operations and can help keep fluids moving in the right direction.
Disco Check Valve Specifications
| Product Range | Size | Pressure Class |
|---|---|---|
| Single Disc Check Valve | 40 NB to 1000 NB | 150# to 1500# |
| Non Slam Check Valve | 15 NB to 300 NB | 150# to 600# |
| Dual Plate Check Valve | 50 NB to 600 NB | 150# to 1500# |
Technical Specifications
| Single Disc Check Valve | API 594 / API 6D |
| Non Slam Check Valve | API 594 |
| Dual Plate Check Valve | API 594 |
| Flanged End Dimensions | ASME B16.5, ASME B16.47 A & B |
| Valve Inspection & Testing | API 598 |
| Visual Inspection | MSS SP 55 |
| Non Destructive Test (RT, UT, MT, PT) | ASME B16.34 |
| Pressure - Temperature Rating | ASME B16.34 |
Application
- Seawater
- Blackwater
- Fuel
- Air
- Weapons Discharge
- Bespoke Applications
