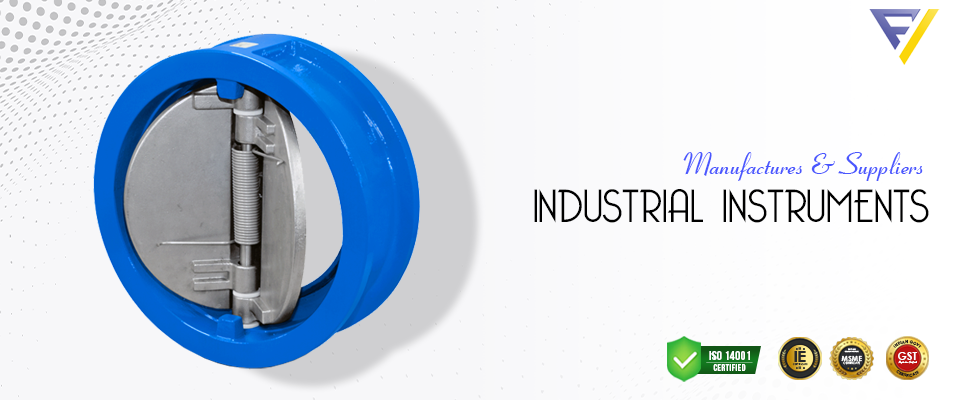

Dual Plate Wafer Check Valve is a valve designed for industrial applications. It consists of two metal plates hinged together and sealed with a rubber gasket. The hinge is located on the top of the valve so that when fluid pressure is applied to the bottom plate, the top plate is forced open, allowing fluid to pass through.
The Dual Plate Wafer Check Valve is often used in pipelines that carry liquids or gases under high pressure. When the pipeline is shut down, the Dual Plate Wafer Check Valve prevents backflow by closing automatically. Dual Plate Wafer Check Valves are available in various sizes and materials to suit different applications.
Dual Plate Wafer Check Valve Specifications
| SIZE RANGE | : | 2" to 12” | 50 MM TO 600 MM |
| BODY | : | ASTM A 216 Gr WCB | WC1 | WC6 | WC9 | LCB CLOSURE PLATE (DISC) SS 304 | SS 316 |
| PRESSURE RATING | : | PN10, PN16, CLASS 125 |
| HING PIN | : | AISI 304 | AISI 316 |
| STOP PIN | : | AISI 304 | AISI 316 |
| SPRING | : | STAINLESS STEEL |
| SEAT | : | EPDM |
| MFG STD | : | API 6D | API 594 |
| INSP & TEST STD | : | API 6D | API 598 |
| ENDS | : | WAFER TYPE TO SUIT ANSIB 16.5 (150#) |
| HYD-TEST PRESSURE | : | BODY : 425 Psig (30 Kg/Cm²) SEAT : 300 Psig (21 Kg/Cm ²) |
Standard Material & Construction
| Body Materials | : | Cast Iron, Carbon Steel, Stainless Steels, Duplex Stainless Steel, Super Duplex |
| Resilient Seat Materials | : | EPDM, Buna-N, Neoprene, and Viton-B |
| Other Materials Available on Request (contact us) | ||
Application
- Petroleum Refining
- Oil and Gas Production
- Chemicals and Petrochemicals
- Power Generation
- Steel/Primary Metals
- Marine
- Water and Wastewater
- Pulp and Paper
- LNG (Liquiefaction / Regasification)
- FPSO
- Oil Transmission Pipelines
- Renewable Energy
