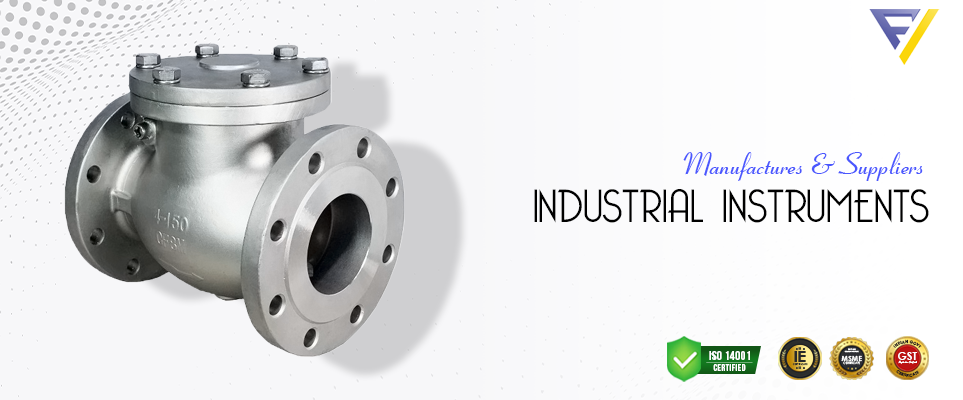

An industrial Swing Type Check Valve is a valve used to control the flow of liquids and gases. Swing check valves are designed to open and close with the flow of the fluid. When the fluid flows in the direction that allows the valve to open, the disk will swing open, allowing the fluid to pass through. When the fluid reverses direction, the disk will swing closed, preventing the fluid from flowing back.
Swing check valves are designed for high-pressure applications and are often used in conjunction with other types of valves, such as relief and safety valves. Swing check valves are available in a variety of materials.
Swing Check Valve Specifications
| Size | : | 2” (50 mm) to 36” (900 mm) |
| Class | : | 150# / 300# / 600# / 900# / 1500# |
| End | : | Flanged End to ASME B16.5 RF |
| Design | : | BS 1868 / API 6D |
| Face to Face | : | ASME B16.10 / API 6D |
| Inspection & Testing Std. | : | API 6D / API 598 / BSEN 12266PI |
| *Special Material & Higher Size/Class Valves also available on request | ||
Swing Check Valve Features
- Cast Steel Check Valves have been designed to meet the requirements of BS 1868 /ASME B 16.34/API 6D-ISO14313.
- Face to Face and End to End dimensions conform to ASME B 16.10 / BS 2080 / DIN
- End flange dimensions conform to ASME B 16.5 / API 605 / BS 3293 / DIN
- Butt weld end dimensions conform to ASME B 16.25
- The Seat-rings are cylindrical bottom seated type having ample cross section for strength are provided with welded in and threaded Seat-rings will be supplied on request. In case of SS valves the Seat-rings are integral to Body.
- The Body to Bonnet joint is a male & female in ASME 150#, 300# & 600# valves and ring joint is used in higher classes.
- Valves meet the requirements of fugitive emission levels Shell category B as per MESC SPE 77/312
- Tilting Disc Design Available
- Check Valves can be supplied with counter weight or dash pot arrangement
