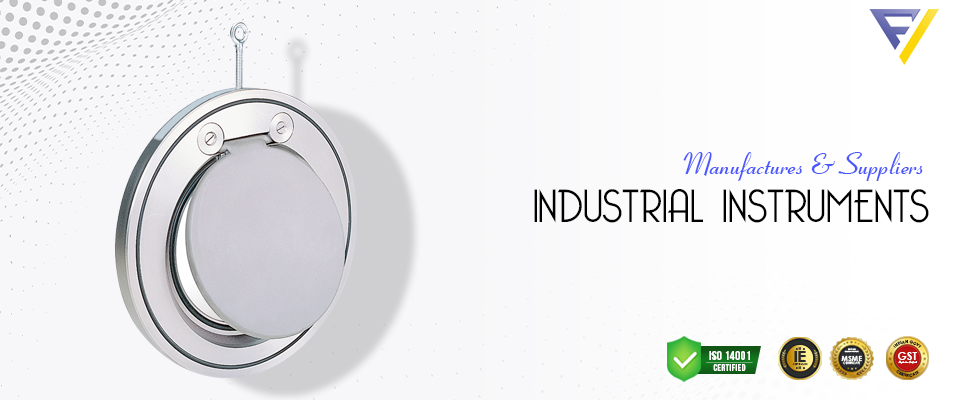

Wafer Type Swing Check Valves are designed for installation between two flanges in order to prevent back siphonage of contaminated fluids. Wafer Type Swing Check Valves are most often used in industrial applications, such as water and sewage treatment, where it is necessary to prevent the backflow of fluids. Wafer Type Swing Check Valves have a disc that swings open and closed in order to allow or block the flow of fluid.
Wafer Type Swing Check Valves are available in a variety of sizes and materials, making them suitable for a wide range of applications. Wafer Type Swing Check Valves are easy to install and maintain, making them an ideal choice for industrial applications.
Technical Features
| Size Range | : | DN25 - DN400 |
| Pressure Range | : | PN16 |
| Temperature | : | -10°C to +200°C |
| Face to Face | : | EN 558 Series 97 |
| Connection | : | Wafer Type EN 1092-1 / ISO 7005-1 |
| Testing | : | EN 12266-1 |
| Marking | : | EN 19 |
Body & Disc Variations
- ST-37 Body / 1040 Disc
- ST-37 Body / SS304 Disc
- ST-37 Body / SS316 Disc
- SS304 Body / SS304 Disc
- SS316 Body / SS316 Disc
Product Features
- V208 type is with Steel body and SS304 Disc. (SS304 Body & Disc is optional)
- EPDM sealing/sleeve/gasket is by default. Different sealing materials are available
- With its compact design saves space, light weight, easy to install and budget friendly
- Even the disc is located within the flow section, with the precisely calculated disc design pressure loss is kept at minimum level
- Fully coated body avoids corrosion
- Do not need any maintenance, easy to make spare part replacements
- No need for additional gaskets for installation on the pipeline
- With its long neck design, suitable for insulation application
- In built hook facilitates installation between two flanges
- Spring feature on disc can be added on request
- Can be used vertically or horizontally
- Hydrostatic test pressure for seat: PN x 1.1 , for shell: PN x 1.5 according to EN 12266-1
Application
- Steam
- Hot & Cold Water
- Power & Heat Engineering
- Pressurized Air
- Industrial Technologies
- Fluids without Acidity or Alkalinity Properties
