Industrial Wafer Type Butterfly Valves are butterfly valves that are used for the transfer of liquids and gases between two vessels. They are commonly used in industries where there is a need for precise control of flow rates. They are also used in chemical and pharmaceutical manufacturing plants, where precise flow rates are required.
They are made from a variety of materials. They are designed to be durable and to last for a long period of time. They are also easy to install and to operate, which makes them an ideal choice for industrial applications.

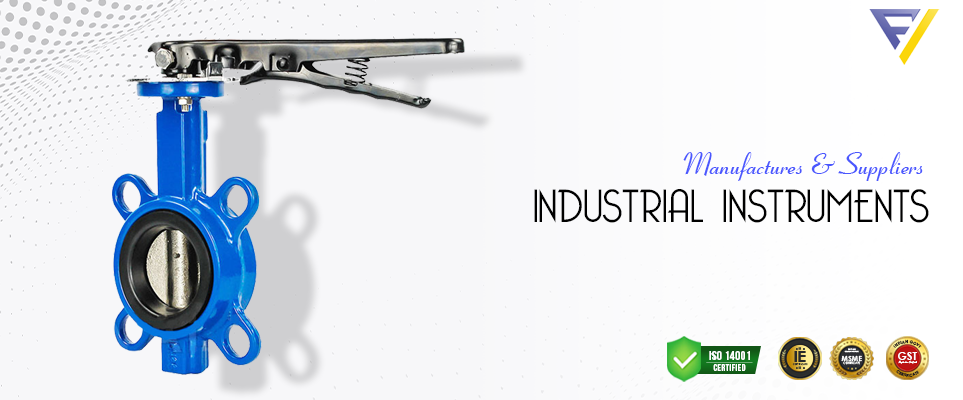

Wafer Type Butterfly Valve
Wafer Type Butterfly Valve
Wafer Type Butterfly Valve
Wafer Type Butterfly Valve Specification
| DN/NPS | : | DN40 – DN800 (1,5” – 32”) |
| Operating Pressure | : | 150 PSI, PN6, PN10, PN16 |
| Flange Connection | : | ANSI CL 150, JIS 5K, PN6, PN10, PN16 |
| Top Flange | : | ISO 5211 |
| Marking | : | EN 19 |
| Face to Face Length | : | EN 558-1/20 |
| Test Standard | : | EN 12266-1 |
Design & Testing Standard
- Replaceable rubber sleeve with integrated seal for functionally reliable use for flared flanges, welding flanges, PE flanges as well as loose flanges with V-collar
- Stable sealing seat due to liner with vulcanized support ring
- Tight in both flow directions
- Anti-blowout shafts
- Tightness to DIN EN 12 266-1, leak-rate A
- Top flange connection dimensions to ISO 5211
- Flange connection dimensions to EN1092
- Maintenance-free shaft bearings
- Certificate EN10204 3.1
- Body : Cast Iron GG25, from DN700 ductile cast iron GGG40/50
- Disc : Ductile Cast Iron GGG50
- Sleeve : EPDM
- Valve Shaft : Stainless Steel 1.4021
Applications
- Dams & Hydro Power
- HVAC
- Industrial
- Irrigation
- Power Plants
- Sewage
- Waste Water Treatment
- Water Treatment
Corrosion Protection
- Body : Internally and Externally Epoxy Coated, Coating Thickness >250 µm, blue RAL 5010
- Disc : Epoxy Coated
