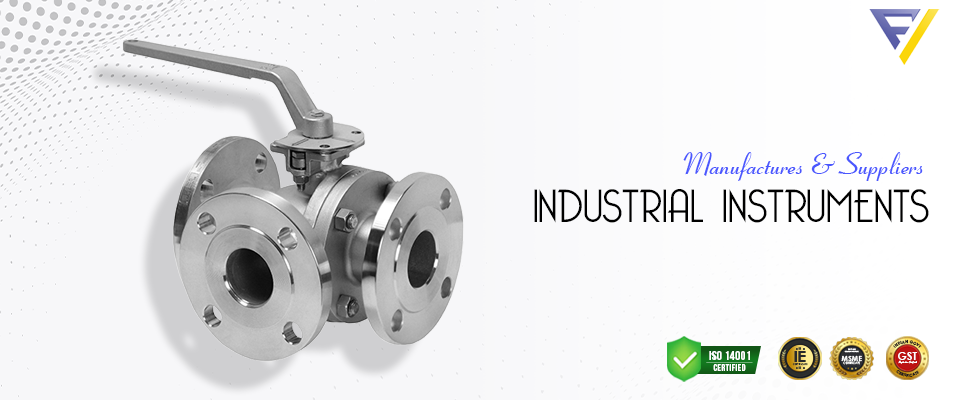

Three Way Ball Valve Flanged End are industrial valves that have three ports. They are used to control the flow of fluids in industrial applications. Three-way ball valves have two seats and one ball with three spherical openings. The ball is rotated, so the openings align with the ports to allow flow or block it. Three-way ball valves are also known as T-Port or L-Port valves.
Three Way Ball Valve Flanged End are used in petrochemical, oil and gas, food and beverage, pharmaceutical, and power generation industries. Three-way ball valves are available in various materials. Three-way ball valves are used in applications where there is a need to change flow direction or control multiple flows.
3 Way Ball Valve Specification
| Size | : | 1/2″-8″ DN15-DN200 |
| Pressure | : | "150, 300" | PN16-PN40 |
| End Connection | : | Flange (FF, RF, RJ), Butt Welding |
| Body Material | : | WCB, CF8, CF8M, Duplex Stainless etc |
| Ball Material | : | CF8, CF8M, CF3, CF3M |
| Seat Material | : | PTFE, RPTFE, Metal Seat |
| Stem Material | : | SS304, SS316, 17-4PH |
| Design Standard | : | API 6D |
| Face to Face | : | MFD |
| Test Standard | : | API 598 |
| Temperature Range | : | -29°C~120°C |
| Actuator Options | : | Lever, Worm Gear, Pneumatic, Electric |
