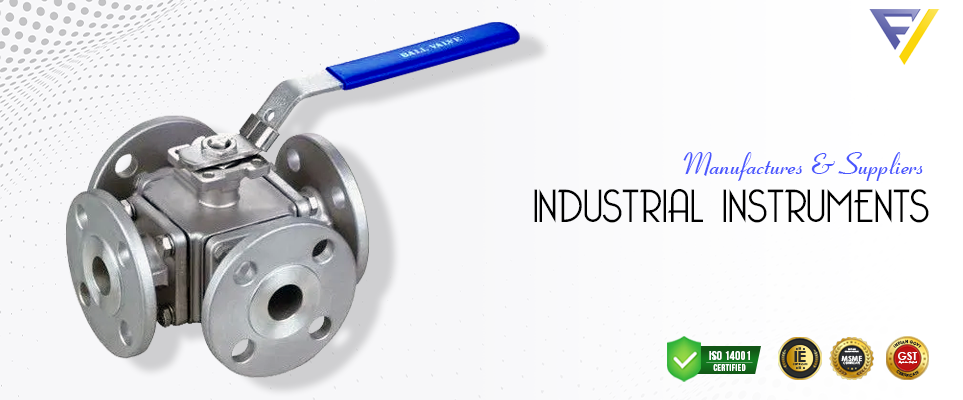

Four way ball valve flanged end are one of the most commonly used in industrial applications. As the name suggests, they have four ports that can connect two pipes or tubing. Four-way flanged ball valves are often used in applications where a large volume of fluid needs to be redirected or controlled.
For example, they are commonly used in water treatment plants and oil refineries. Four-way flanged ball valves are also popular in food and beverage processing, as they can control the flow of both liquids and gases. Due to their versatility and durability, four-way flanged ball valves are essential to many industries.
4 Way Ball Valve Specification
| Size | : | 50NB — 600NB |
| Pressure | : | 150 PS1 |
| Temperature | : | 0 Deg C - 1200 Deg C |
| Body, Chest | : | Solid One piece casting of Cast Iron Fg 260, Cast Steel Gr WCB ,CF8,CF8M |
| Seat | : | Integral to Body, Soft, Optional |
| Gate | : | AISI SS 304,316,316L,317,317L |
| Screw Spindle | : | AISI SS 410,304,316 |
| Nut | : | Brass |
| Yoke | : | Plate type of MS |
| Gland Follower | : | Cast Iron , Cast steel , Ductile Iron ,CF8,CF8M |
| Hand Wheel | : | Cast Iron, Cast Steel, Ductile Iron |
| Gland Packing | : | PTFE, PTFE Impregnated |
| Ends | : | Lugged |
| Port | : | STANDARD [Round], Optional V Port, Diamond Port |
Design & Testing Standard
| Valve Design | : | BS 5351 / ANSI B 16.34 / API 6D |
| Pressure Testing | : | BS 6755 Part II / API 598 / API 6D |
| Face To Face | : | Mfg. Standard |
| Flange Drilling | : | ANSI B 16.5 / BS 10 Table / DIN / IS 6392 |
| ButtWeld End | : | ANSI B 16.25 |
| Socket Weld End | : | ANSI B 16.11 |
| Screwed End | : | ANSI B 1.20.1(BSP/NPT) |
Salient Features
- High Performance Ball Valve
- Low Pressure Drop
- Compact Design
- Quick in Action
- Positive Shut off
- Longer Life
