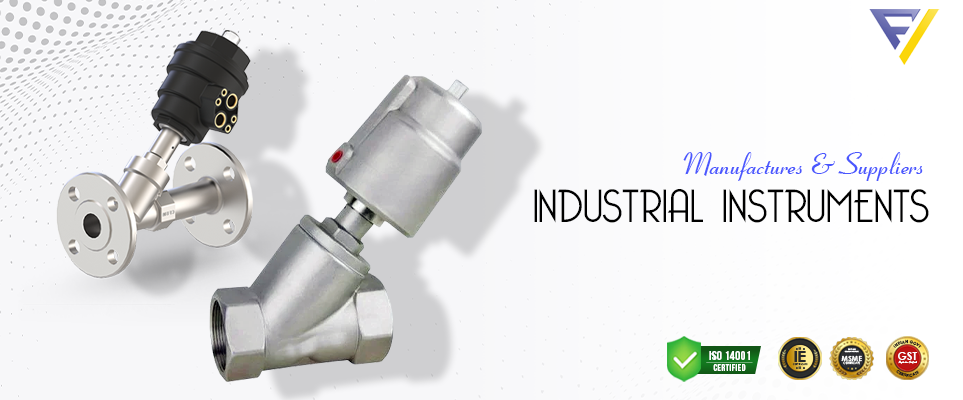

Pneumatic angle seat valves are used in a number of industries, including oil and gas, chemical processing, and food and beverage production. Also known as PASV valves, these devices are designed to regulate the flow of liquids and gases through a piping system.
PASV valves use a pneumatic actuator to open and close the valve, and they are available in a variety of sizes and configurations. PASV valves are often used in applications where space is limited or where there is a need for frequent operation of the valve. PASV valves are also well-suited for use in corrosive or hazardous environments.
Pneumatic Angle Seat Valve Specifications
| End Connection | : | Screwed / Flange / Tri-Clamp |
| Body Material | : | SS ASTM A351 Grade CF8 / CF8M |
| Seal | : | TEFLON / VITON / EPDM / SILICON |
| Circumstance Temp | : | -10°C to 70°C |
| Media Temp | : | -10°C to 180°C |
| Media | : | Steam, Air, Water, Chemical, Gases, Oil, Diesel, Hot Water |
Actuator Information
| Cover | : | SS304 |
| Plate | : | Aluminum Die-Cast |
| Working Pressure | : | 3.5 to 7 bar air (Not recommended actuator pressure above 7 bar) |
| Life | : | More than ten million cycle |
Pneumatic Angle Seat Valve Applications
- Cooling
- Pre-Heating
- Sterilizers and Autoclaves
- High Pressure Lubrication
- Steam Distribution
- Bottling
- Equipment for Textile Production
- Equipment for Industrial Steam Pressing
- Mixing of Paints, Inks and Colours
- Equipments for Industrial Washing and Cleaning
