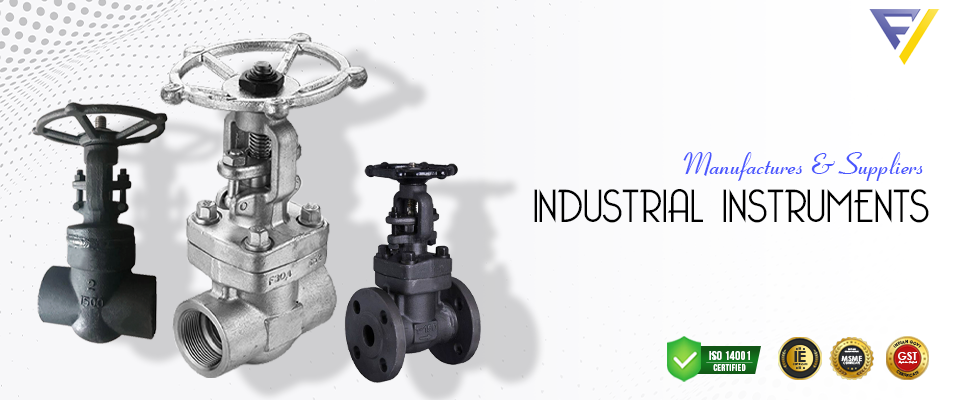

Forged steel gate valves are a type of valve used in a variety of industrial applications. Forge steel is a more robust and durable material than standard steel, making it ideal for use in high-pressure situations. Forge steel gate valves are designed to open and close quickly, and they can be used with a variety of fluids, including water, gas, and oil. In addition, forged steel gate valves are available in various sizes and configurations to meet the needs of any application. Whether you need a tiny valve for a low-pressure system or a large one for a high-pressure system, a Forge steel gate valve can meet your needs.
Forged Steel Gate Valve Specifications
| Size | : | NPS 1/4"-2" (DN 8-50) |
| End Connection | : | Threaded, Socket Weld, Welded, (FB), (RB) |
| Pressure Class | : | ASME Class 150# to 2500# |
| Body Material | : | Forged ASTM A105N Steel (Trim 8), Forged ASTM A182 Stainless Steel (Trim 12) |
| Wedge Material | : | F6A (HF), F304 (L), F316 (L), F51 etc. |
| Seat Material | : | SS410 (HF), F304 (L), F316 (L), F51 etc. |
| Stem Material | : | SS410, F304 (L), F316 (L), F51 etc. |
| Design Standard | : | API 602, NACE MR0175 |
| Face to Face | : | API602 |
| Test Standard | : | API598 |
| Temperature Range | : | -196°C~650°C |
| Actuator Options | : | Hand wheel, Pneumatic, Electric, Hydraulic |
Salient Features
- Body & Bonnet made from high quality forging
- The Forgings are precision machined for high performance
- Leak Proof Body-Bonnet Joint With Spiral Wound Gasket
- Ground Finish Stem
- Self Aligning Two Piece Gland
- Back seating feature facilitates repacking of the stuffing box on line with the valve in fully open position
Applications
- Power Plants & Process Industries
- Petrochemical Plants & Refineries
- Fertilizers Plants
- Cement & Steel Industries
- Process & General Industries
- Sugar Industries & Distillery Plants
- Water, Steam, Gas, Oil & other Non-aggressive media
