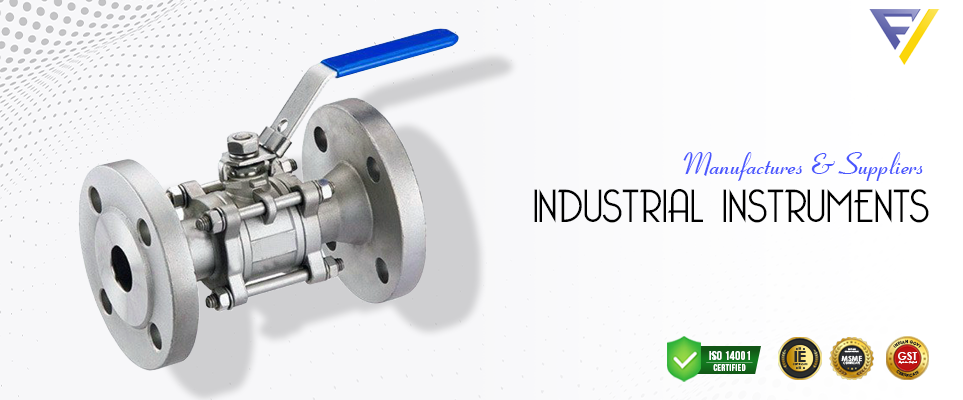

Three Piece Ball Valve are valves that have a detachable joint at the centre of the valve body. This type of valve is often used in industrial applications where there is a need to connect or disconnect two pipe sections quickly and easily. Three Piece Ball valves typically have a male thread on one side and a female thread on the other, allowing them to be connected or disconnected without using tools.
These valves are also available with welded end connections. Three Piece Ball Valve are available in various sizes and materials, making them suitable for use in various industries.
Three Piece Ball Valve Design Features
| Size | : | 1/2″-4″ DN15-DN100 |
| Pressure | : | 1000WOG, 2000WOG |
| End Connection | : | Flange (FF, RF), BW, SW, BSPT, NPT |
| Body Material | : | CF8, CF8M, CF3, CF3M |
| Ball Material | : | SS304, SS316, SS304L, SS316L |
| Seat Material | : | PTFE, RPTFE |
| Stem Material | : | SS304, SS316 |
| Design Standard | : | ANSI B16.34, GB/T 12234 |
| Face to Face | : | ASME B16.10, GB/T 12221, JIS B2002 |
| Test Standard | : | API 598, GB/T 13927, EN12266-1 |
| Temperature Range | : | -20°C~150°C |
| Actuator Options | : | Manual, Pneumatic, Electric |
