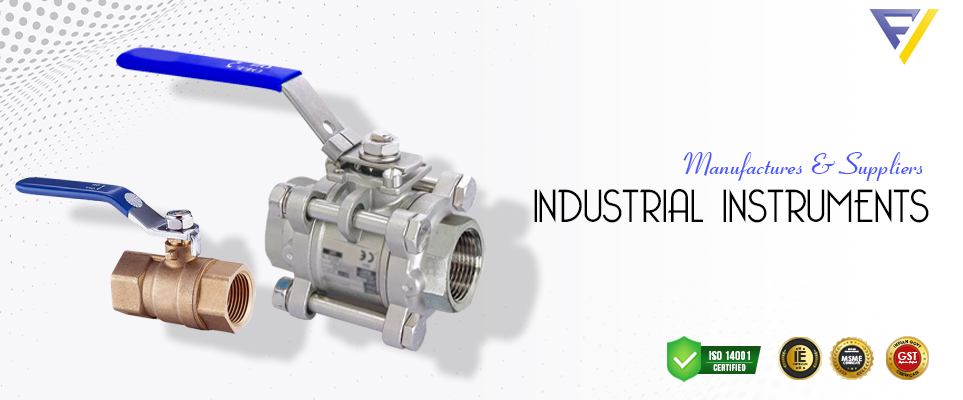

Threaded ball valves are one of the most common in industrial applications. As the name suggests, they are fitted with threads that allow them to be connected to pipes or other fittings. They are designed to withstand high pressures and temperatures, making them ideal for various industries.
Threaded ball valves are typically used to control the flow of liquids or gases, but they can also be used to regulate pressure or vacuum levels. Due to their versatility and durability, threaded ball valves are essential to many industrial operations.
Design & Testing Standard
| Size | : | 1/4" - 4" (inches) |
| Steam Rating | : | 150 PSI WSP |
| Body | : | ASTM A351 Gr.CF8M |
| Ball | : | SS316 |
| Stem | : | SS316 |
| Gate | : | AISI SS 304,316,316L,317,317L |
| Seat | : | Reinforced |
| End Connections | : | Threaded End Ball Valves |
| Working Pressure | : | 1000 PSI |
| Temperature Range | : | -50° to 450° F |
| Options | : | Padlocking Device |
| Test Standard | : | API 598 |
| Vacuum Service | : | 29" Hg |
Threaded Type
- ANSI B1.20.1 (NPT)
- DIN 259 / DIN 2999
- ISO 228
- BSP
- PT
